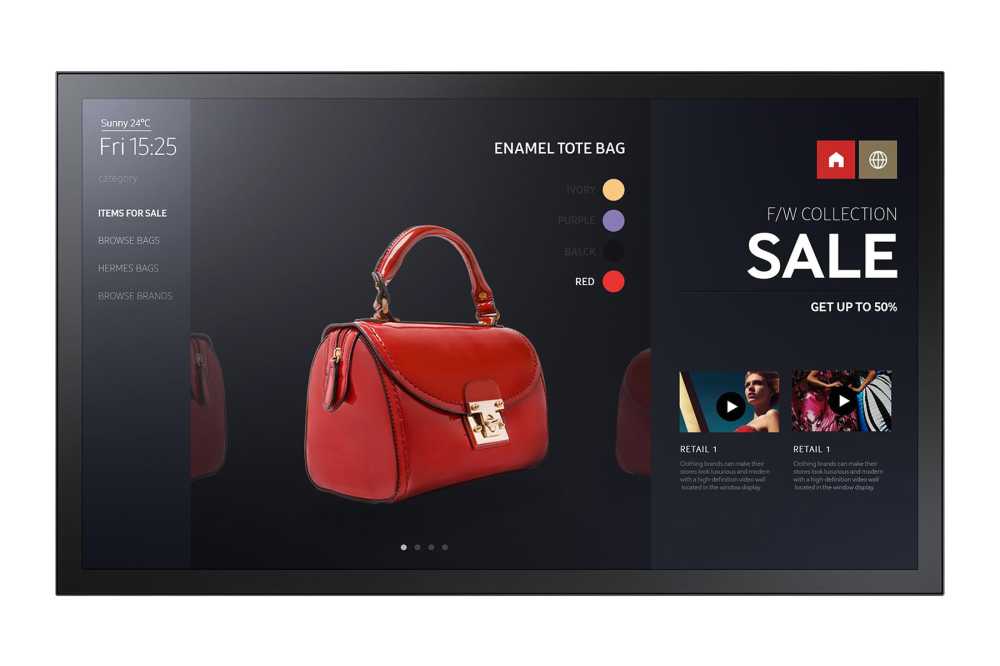

PM43F-BC

All-in-one displays that leverage capacitive touch technology backed by Tizen-powered media player

Description

  • Capacitive touch technology that enables up to 10 different touch points simultaneously
  • All-in-one display solution with embedded MagicInfo Player S4 powered by Tizen™
  • IP5x certification that reflects it can withstand demanding usage environments

Panel

Diagonal Size Class 43
Type 60Hz E-LED BLU
Resolution  1920×1080 (16:9)
Pixel Pitch(mm) 0.49(H) x 0.49(V)
Active Display Area(mm) 940.89(H) x 529.25(V)
Brightness(Typ.) 350nit (w/ Touch Glass)
Contrast Ratio(Typ.) 3000:1
Viewing Angle(H/V) 178:178
Response Time(G-to-G) 8ms
Display Colors 10bit Dithering – 1.07Billion
Color Gamut 72%

Mechanical Spec

Dimension (mm) Set 983.9 x 582.3 x 62.8
Package 1097 x 721 x 161
Weight (kg) Set 15.9
Package 19.8
VESA Mount 200×200
Protection Glass 3.2T Semi-Tempered Touch Glass
Stand Type Foot Stand (Optional)
Bezel Width (Top/Side/Bot) (mm) 25.0 / 20.0 / 25.0

Operations

Operating Temperature 0℃~ 40℃
Humidity 10~80%
